INTROCON

General information

Conveyors with steel cord belts are typically used for carrying of bulky materials such as ore, coal, rocks for a long distance in mining and power industry, steel mills, sea ports, etc. Integrity of steel-cord conveyor belts considerably depends on condition of steel cords inside the belt. Broken cords, corrosion, poor splicing of the belt may cause accident. Steel-cord conveyor belt flaw detector INTROCON is designed for nondestructive inspection of steel cords during operation of the conveyor belt. The instrument can be also used for inspection of steel-cord conveyor belt during production run. INTROCON detects broken cords and optionally assesses general corrosion of cords. These features enable INTROCON to check and monitor condition of splicing areas by measuring the distance between ends of cords within splice, and thus makes possible to timely suspend the conveyor for repair of the belt when necessary.

INTROCON operation is based on eddy current principle of nondestructive testing, and can inspect conveyor belts from 600 mm to 3000 mm width and thickness from 10 to 50 mm at speed up to 7 m/s. Conception of the instrument allows its upgrade to implement INTROCON into conveyor monitoring system.

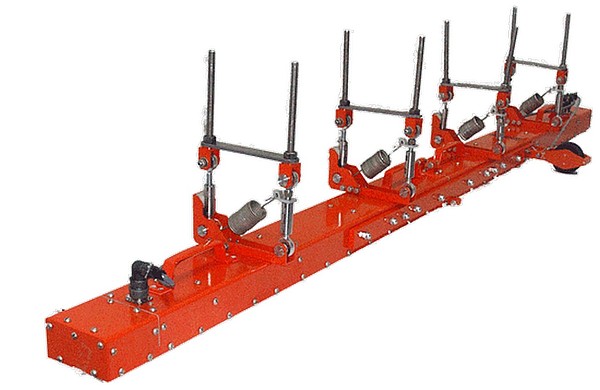

INTROCON comprises basic unit and scanner, connected with cable. The software Wintrocon is delivered with the INTROCON. The INTROCON basic unit is designed to collect and store inspection data from the scanner, and displaying important inspection data on-line. Basic unit is battery operated and produced for operation in normal or explosive environment. The scanner of built-up structure comprises 2 or 3 modules assembled together with the fish and connected with cable. Active module has implemented electronic circuitry and distance counter as well as the socket to connect basic unit. Both active and passive modules are equipped with sensors, located crosswise the belt, so steel cords are scanned by individual sensor during inspection. Prior to inspection, the scanner is attached to the steel frame by means of suspension system in the manner, that the air gap between the scanner and belt surface, depending on the number and diameter of steel cords, is from 10 to 20 mm. Scanners of type from S-800 to S-1600 operate with 1 basic unit, while S-1800 to S-3000 require simultaneous connection of 2 basic units. Calibration of the INTROCON is required prior to inspection. Calibration procedure is carried with the belt under inspection and take very short time.

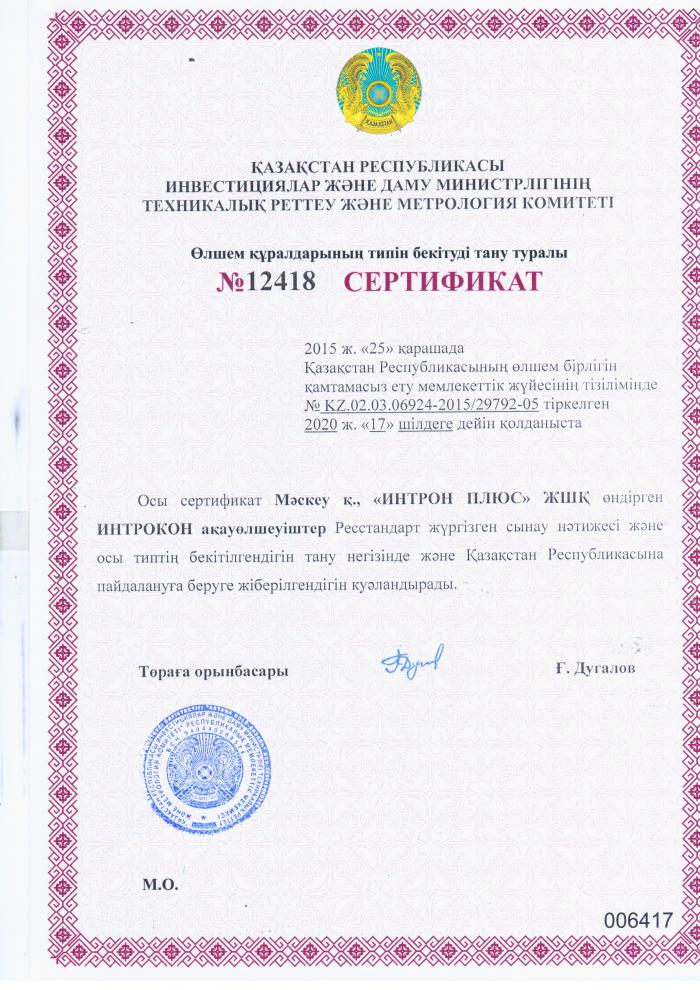

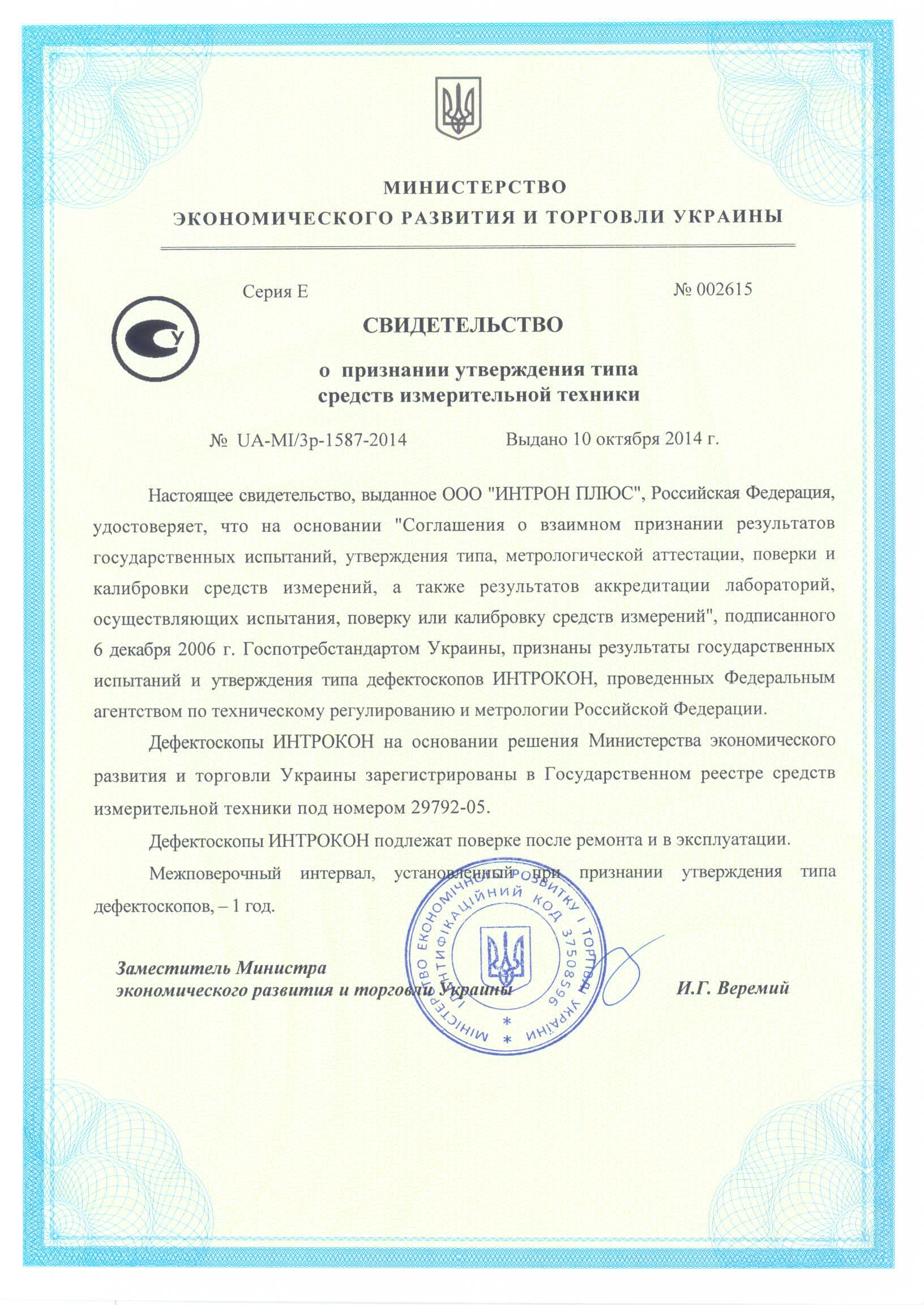

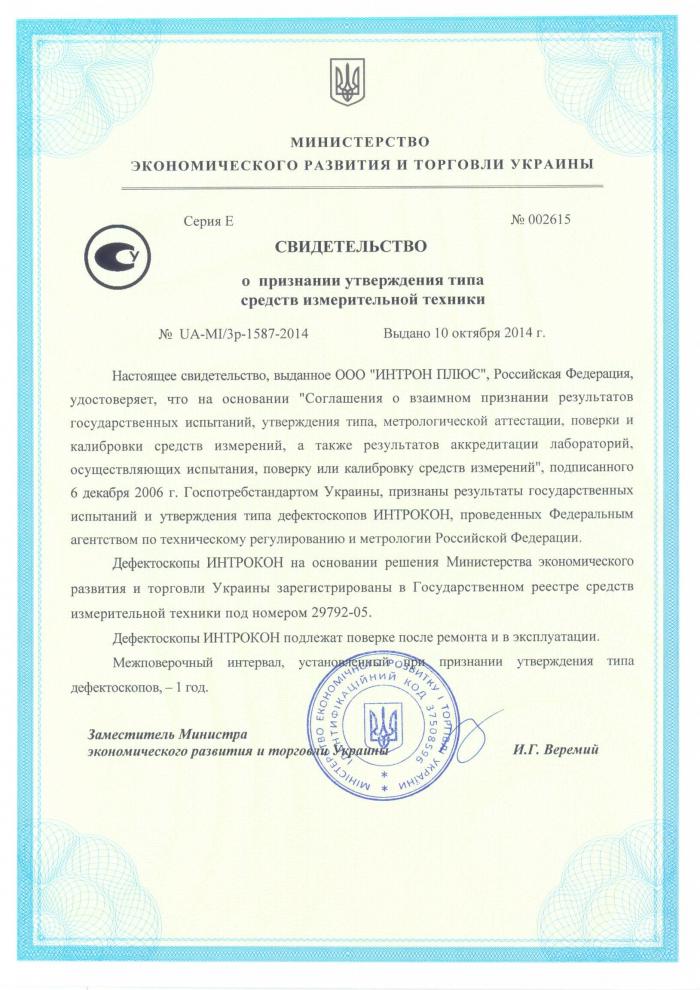

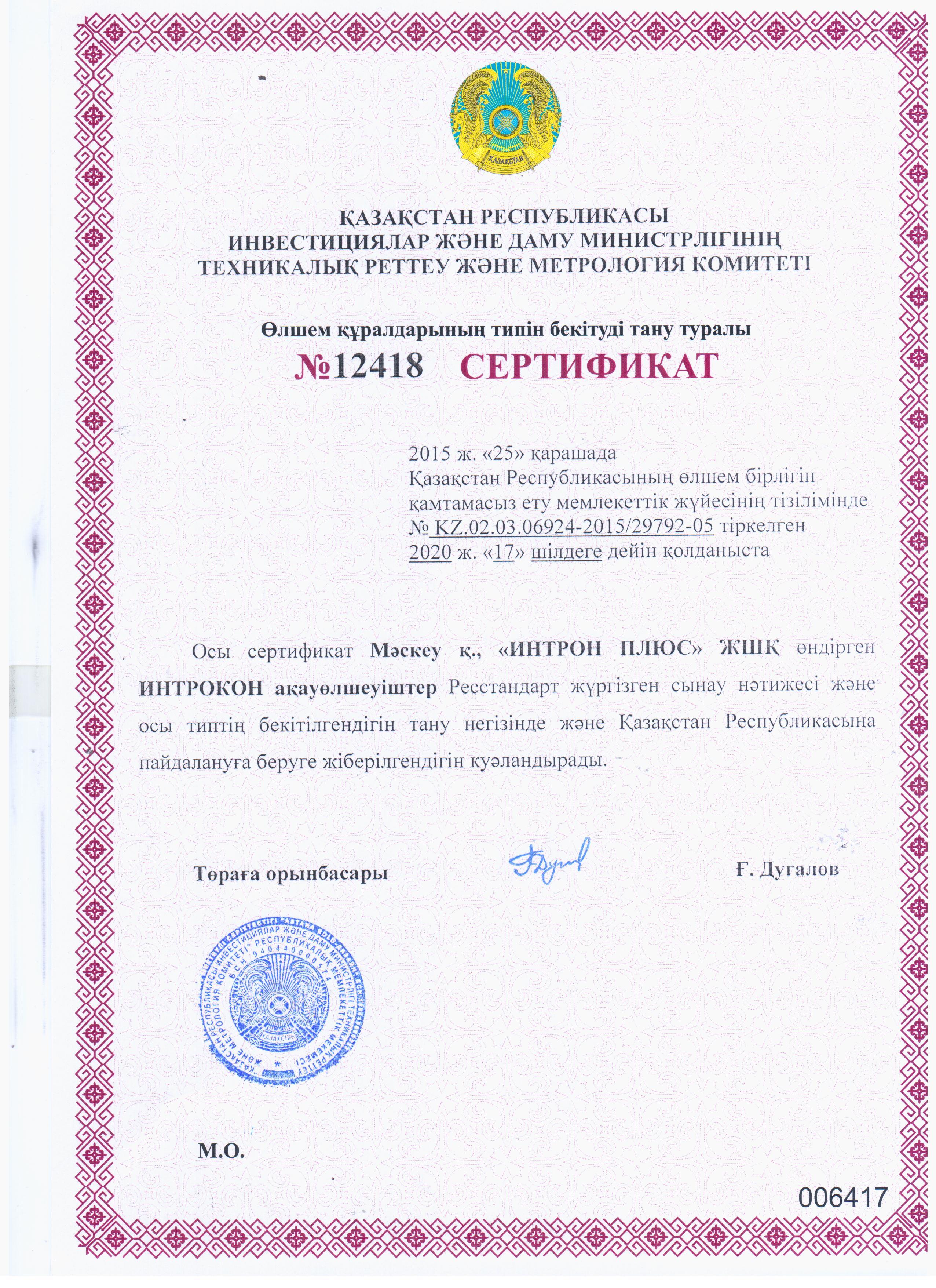

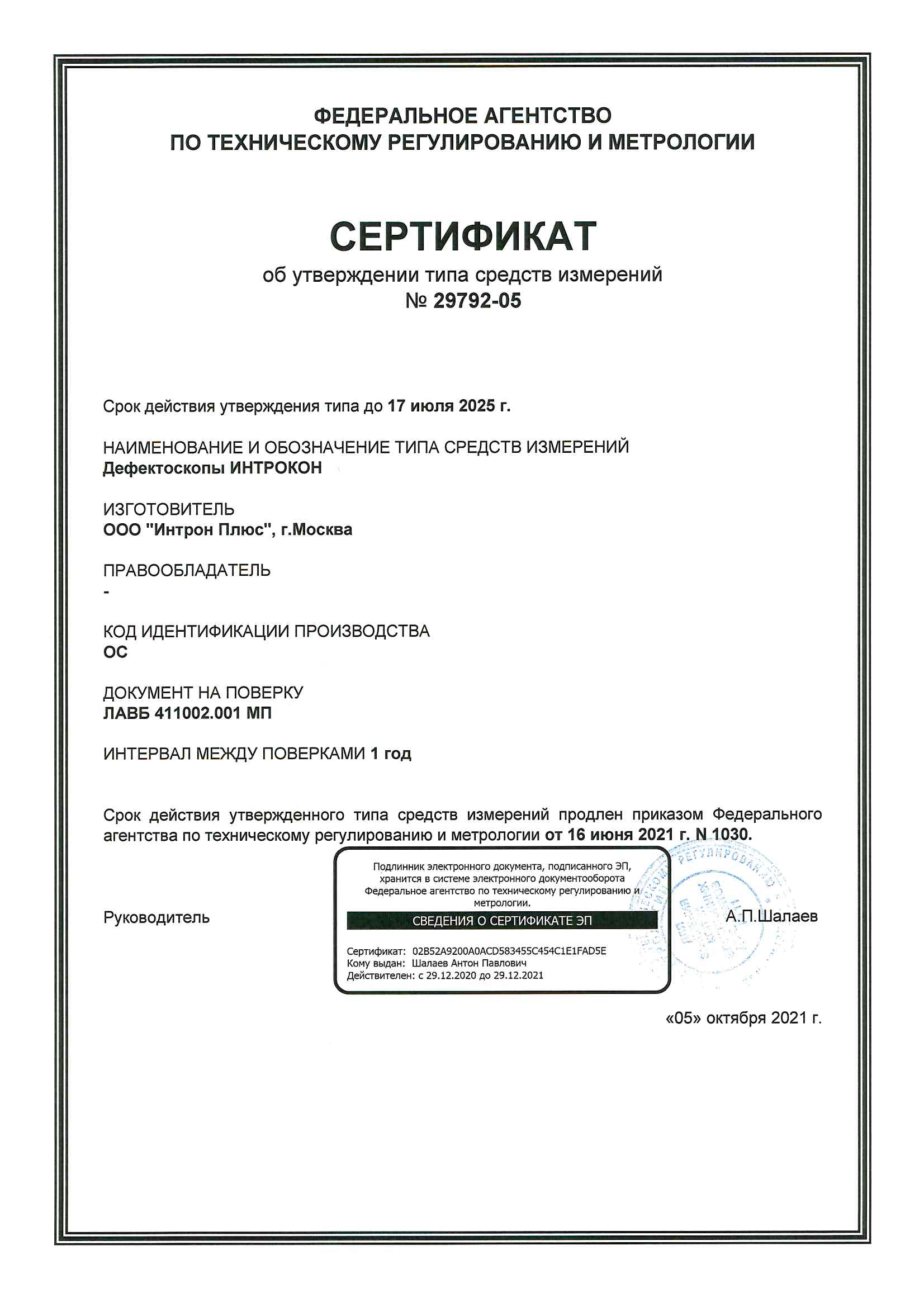

Certificates
Booklet

Download the booklet INTROCON

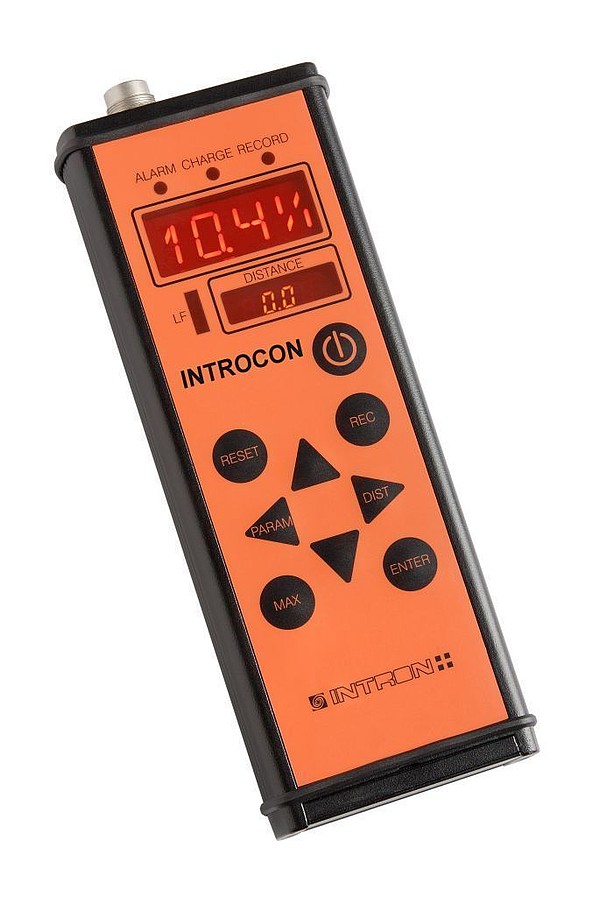

Pocket size basic unit with 2 LED displays, waterproof keypad, AA size rechargeable batteries, downloading capabilities. Available in regular and explosive proof design. Compatible with all scanners* INTROCON.

Size 230 x 85 x 35 mm
Weight 0,7 kg
Data logger memory 16 Mb
Ambient temperature -30°…+50°C
6 hours continuous operation
Environment protection IP 65
Cable to the scanner up to 8 m length

* Scanners S-1800 and wider require connection of 2 basic units to the scanner.

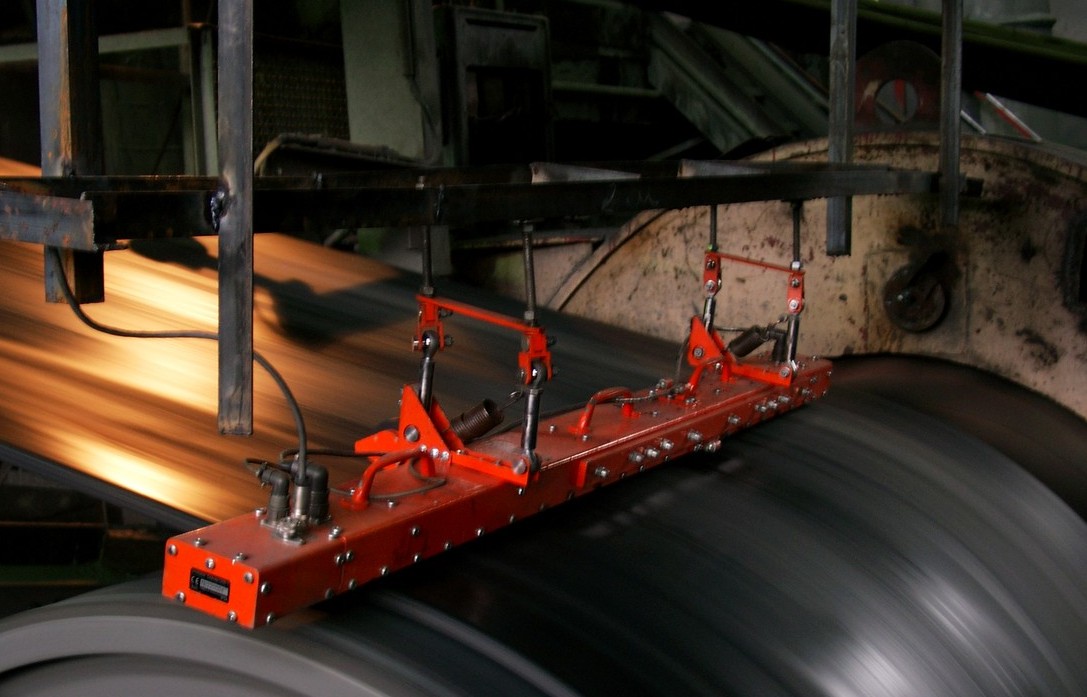

Prior to inspection, the scanner is attached to the steel frame by means of suspension system in the manner, that the air gap between the scanner and belt surface, depending on the number and diameter of steel cords, is from 10 to 20 mm. Scanners from S-800 to S-1600 operate with 1 basic unit. Scanners from S-1800 to S-3000 require simultaneous connection of 2 basic units.

To select right size of the scanner INTROCON, consider the width of the conveyor belt. Below table shows relevance between belt width and size of the scanner and the weight of the scanner.

Belt width, mm	Type of scanner	Weight of scanner, kg
600 to 800	S-800	17-19
1000	S-1000	21
1200	S-1200	23
1400	S-1400	25
1600	S-1600	27
1800	S-1800	29
2000	S-2000	31
2200	S-2200	33
2400	S-2400	35
2600	S-2600	37
2800	S-2800	39
3000	S-3000	41

The software Wintrocon is developed to download and analyze inspection data from basic unit INTROCON to computer. Wintrocon operates under Microsoft Windows 2000/XP/Vista/7/8.1.

Wintrocon main functions

downloading inspection data from INTROCON basic unit into computer;
viewing inspection data as a traces;
carrying out the detailed analysis of conveyor belt traces;
comparing traces from different data files;
processing the traces in different ways;
manual or automatic detection of belt splices;
manual or automatic detection of defects;
merging different traces into one trace;
setting up rejection thresholds;
printing belt traces;
adding comments to traces;
creating reports on results of belt inspection based of .doc templates;
changing settings of INTROCON instrument;
storing information about detected splices and defects;
generating graphical belt map.

Software Wintrocon RTV

The software Wintrocon RTV (Real-Time-View) developed for on-line screening of traces on the screen of computer with simultaneous saving into data logger. The software Wintrocon RTV operates under Microsoft Windows XP (SP2, SP3)/Vista/7.
